10" Dual Row Light Bar

Dual Row 10" LED Light Bar

Ditching maps and making paths is fun but is more enjoyable if you can see the dangers that lie ahead.  That’s why the CVF Offroad line of LED lights are such a welcomed addition to the Legion line of fabricated offroad bumpers.  Available in multiple styles, sizes and beam patterns to light up the trail you’re following or the one you’re forging.

CVF Offroad LED Spot beams are a concentrated light source projected in a tighter beam pattern to illuminate further down the road giving you more warning of obstacles coming your way.  The Flood beams light up a shorter but wider area expanding your peripheral vision allowing you to see further to your sides for things like the road or trail edge or wildlife that decides to play Frogger.  Amber beams will quickly become your best friend in less than clear conditions like dust, snow, sleet, fog and rain.

All lights are 6063 machined aluminum housings featuring optically clear and super durable Lexan lenses and IP 68 & IP69K waterproof ratings.  Connections are 2-pin waterproof DT connectors which can be used as is or cutoff and connected with normal butt, spade or pin connectors.

Specifications:

12V

10”-100W; 20”-200W; 30”-300W; 40”-400W

Osram 5W LED

Deutsch Waterproof Connection

50,000 HR Avg Lifespan

Waterproof: IP68 & IP69K

Operating Temp Range: -40° - 145°

Side & Rear Mounting Option

Beams: Combo/Hybrid

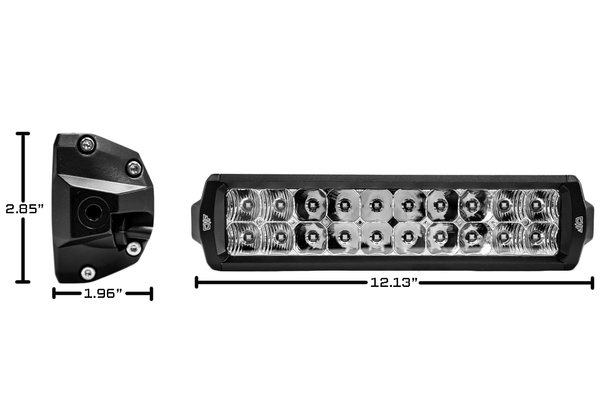

Size: 11.95" x 2.85" x 1.92"
